Explainer: Why Compressed Air Leaks Waste Energy

Compressed air systems in industrial facilities operate under constant demand. When air escapes through small openings, the compressor must work harder to keep the receiver tank pressure within the setpoint. This extra work turns into wasted electricity and heat.

For buyers and engineers, understanding this dynamic changes how you select equipment. You are not just buying a machine that produces a certain number of cubic feet per minute. You are buying a system that must overcome losses that are often hidden, variable, and expensive to fix.

What Is Compressed Air Leakage

Leakage is the unintended escape of compressed air from a pressurized system. It happens at valves, fittings, hose ends, and damaged seals. Unlike a broken pipe that fails loudly, many leaks are small enough to pass daily checks.

These leaks create a phantom load. The compressor sees the pressure drop and restarts. It runs for a short cycle, then shuts off. This short cycling wears on the motor and unloader, and it reduces the machine lifespan.

The term “compressed air leaks” covers both visible and invisible losses. A hiss at a fitting is visible. A slow seep through a worn diaphragm is not. Both consume energy.

How Leakage Drives Energy Loss

Energy loss occurs because the compressor must compress air against the leak rate. The work done to raise the pressure is lost when the air escapes to the atmosphere.

The amount of energy lost depends on two factors. The first is the pressure at which the leak occurs. The second is the volume of air escaping per minute.

Consider a facility with a 100 horsepower compressor. If a leak at the discharge point allows 10 cubic feet per minute to escape, the compressor must produce that extra 10 cubic feet per minute just to hold the line pressure steady. If the leak is at a higher pressure, the energy cost per cubic foot is higher.

This is why leak repair is often the cheapest energy saving available in a plant. You do not need a new compressor. You need to close the gap.

Leak Location	Typical Symptom	Energy Impact
Hose end caps	Hissing when depressurized	Medium
Valve stems	Slow pressure drop	Low to Medium

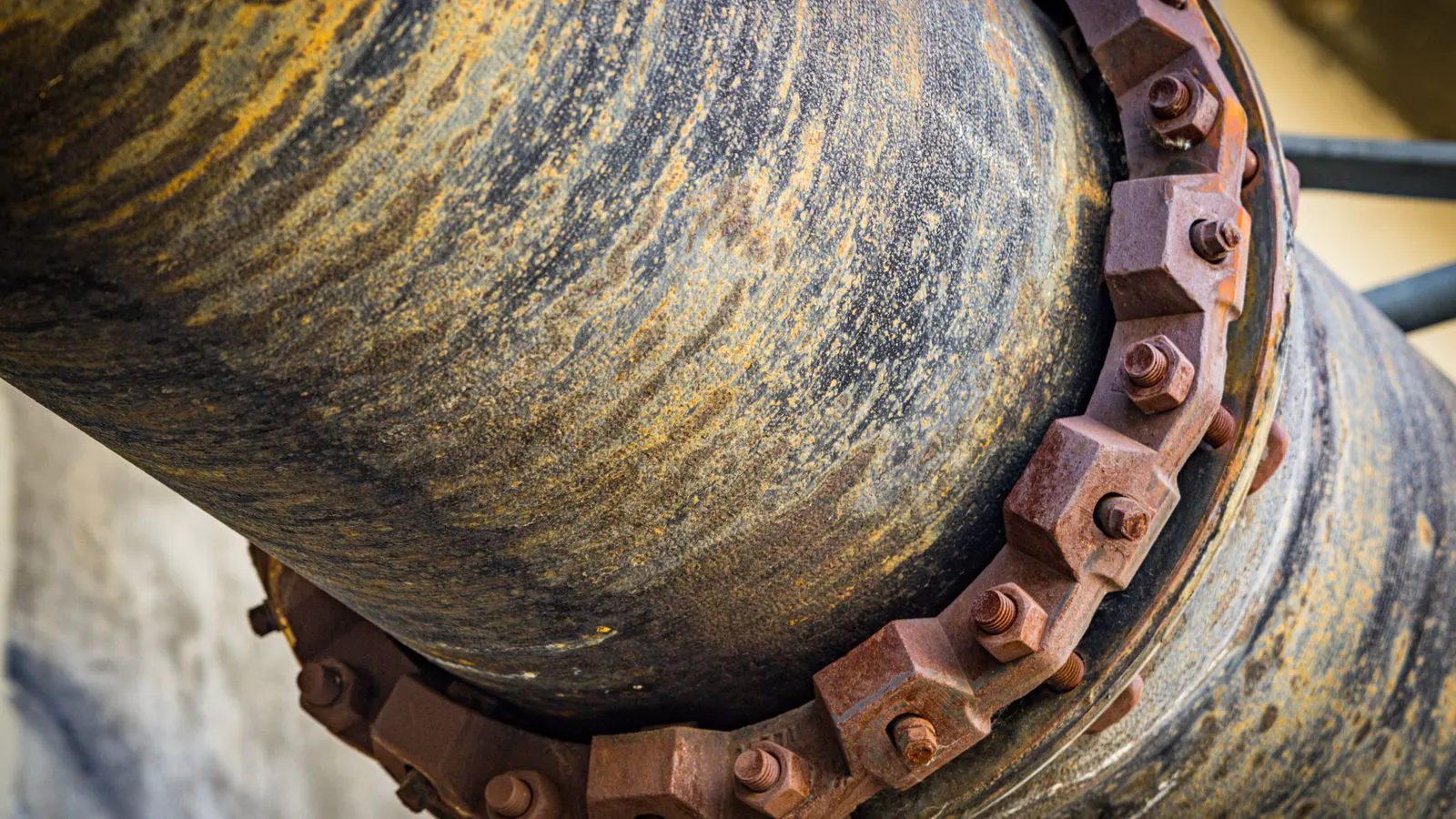

Flange joints	Visible white mist	High
Receiver tank	Condensation and rust	Low
Unloader valve	Clicking or whistling	High

The Impact on Air Quality

Leakage does not just waste energy. It changes the air quality inside the system. When air leaks in through a small hole in a hose or a damaged seal, it brings moisture and particulates with it.

This is a major concern for food and beverage processing. It is also a concern for paint shops and electronics assembly. The air in the line is supposed to be clean and dry. If it is not, the downstream equipment suffers.

Leaking air also causes the compressor to run at higher load factors. This generates more heat inside the compressor housing. The aftercooler and oil separator then have to work harder to remove that heat and moisture. If they fail to keep up, the oil in the system degrades faster.

Buyers who specify compressors for sensitive applications must factor in the leak rate. A system that is oversized to cover leaks is not a good system. It is a system that is designed to fail slowly.

How Leak Rate Affects Sizing Decisions

When you calculate the total air demand for a facility, you must account for the leak rate. The leak rate is the sum of all air escaping from the system under normal operating conditions.

If you ignore the leak rate, your compressor will be undersized. It will run constantly to keep up with the demand. This leads to short cycling and premature failure.

If you over-compensate for the leak rate, you buy a machine that is too big. It will run at low load, which is inefficient. You will pay for a larger unit, a larger electrical service, and a larger tank.

The best approach is to measure the actual leak rate. You can do this by shutting down all non-critical loads and watching the pressure drop in the receiver tank. The rate at which the pressure falls tells you how much air is leaking.

This number becomes part of your sizing calculation. You add the leak rate to the known process demand. The result is the total demand the compressor must meet.

Detection Methods for Uncontrolled Leakage

Finding leaks is a two part process. The first part is to find the obvious. The second part is to find the hidden.

For the obvious, a walk around the facility with a listening device is a good start. A cheap ultrasonic leak detector costs very little and can pick up the high frequency hiss of escaping air. It works even in noisy environments because it filters out low frequency noise.

For the hidden, you need to monitor pressure. Install a pressure transmitter on the main header. Log the data over time. If the pressure drops when no load is running, you have a leak. The rate of drop gives you the leak size.

Ultrasonic detection is the most common method for finding small leaks. It works by converting the sound of escaping air into a visual or audio signal. It is safe, non-invasive, and fast.

Pressure monitoring is slower but gives you a trend. You can see if the leak rate is getting worse over time. This is useful for planning maintenance.

How to Fix Leaks and Save Energy

Fixing a leak is usually cheap. You replace a hose, a fitting, or a gasket. The cost of the part is low. The cost of the labor is low. The energy saved is high.

The key is to fix the root cause. If a hose is leaking because it is old, replace the hose. If a valve stem is leaking because the packing is worn, replace the packing. If a flange is leaking because it is loose, tighten it.

Do not just tape a leak. Tape is a temporary fix. It will fail. The air will escape again. The compressor will run longer. The energy loss will continue.

A good maintenance program includes a quarterly leak check. Walk the facility. Listen for hissing. Check the pressure trend. Fix what you find. This is one of the highest return on investment activities in an industrial plant.

Cost and Lead Time Considerations for Leak Repair

When you fix a leak, you are not just saving energy. You are extending the life of your compressor.

A compressor that runs short cycles wears out faster. The motor sees more starting current. The unloader sees more pressure swings. The oil separator sees more load.

By fixing leaks, you reduce the cycle count. The compressor runs longer, steady cycles. This is easier on the machine. It also means you can size your next compressor correctly.

Buyers should ask suppliers about the expected leak rate of the system they are installing. Ask what the leak rate is for a new system. Ask what it becomes after five years. Ask what the expected energy loss is.

This information helps you compare different options. A system with a lower leak rate may cost more upfront but save more over time. A system with a higher leak rate may be cheaper but cost more in energy and maintenance.

The financial case for leak repair is strong. You save money every day you fix a leak. You extend the life of your equipment. You improve the quality of the air you use.

You do not need a large capital project to get these benefits. You need a plan. A plan to find leaks. A plan to fix them. A plan to prevent them from coming back.

This is the real value of managing compressed air leaks. It is not just about energy. It is about reliability. It is about quality. It is about getting the most from the equipment you buy.
